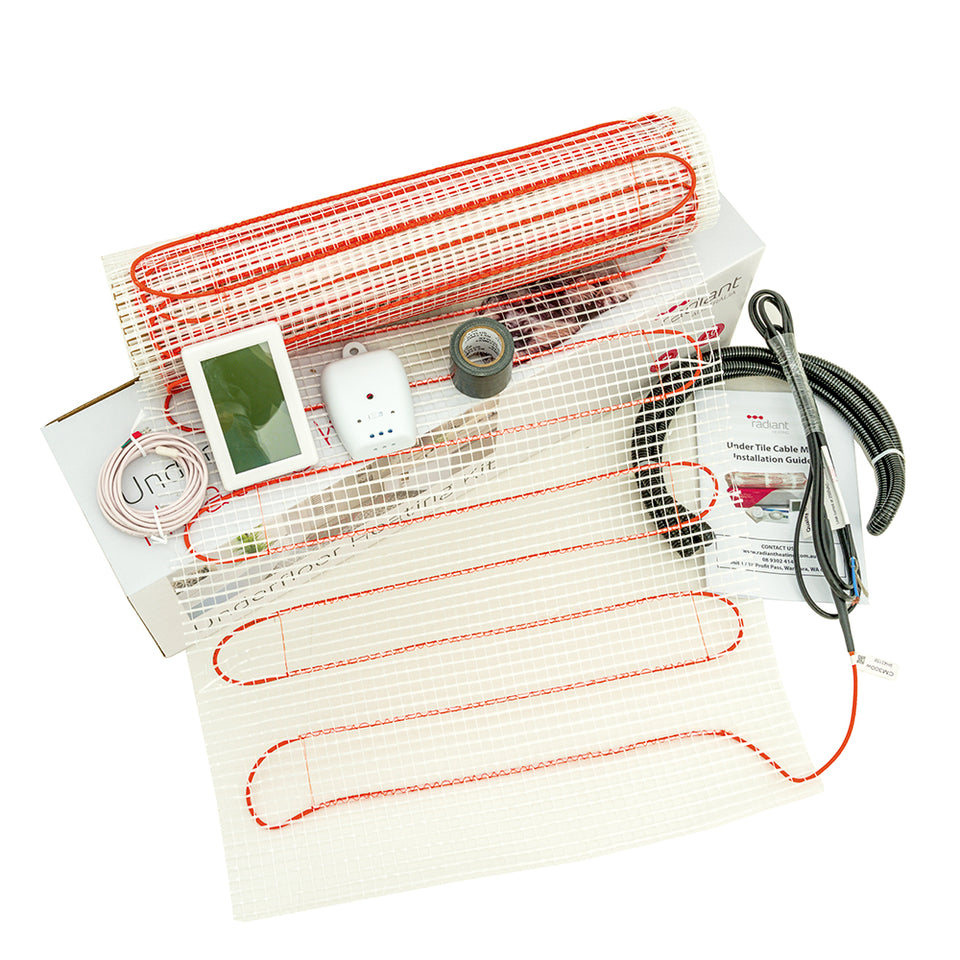

Radiant Under Tile Cable Mat Kit (Living Areas) - 17sqm (UTCMK150-2250W)
Radiant Under Tile Cable Mat Kit (Living Areas) - 17sqm (UTCMK150-2250W) 2
Radiant Under Tile Under Floor Heating Kit

Free shipping on orders over $1,000.00 (bulky items $100.00 each), Australia-wide

Radiant Under Tile Under Floor Heating Kit

$1,486.00

Trade pricing availableApply

SKU UTCMK150-2250W

How to purchase

Your store

Click & Collect

Order online and collect in store

We confirm availability at Alexandria and let you know when your order is ready to collect.

Delivery

Enter your suburb or postcode for a delivery estimate.

Overview

Our under tile floor heating kit is perfect for putting floor heating under tiles, where the floor cannot be screeded. The cable is attached directly to a mat, that is installed on the base surface and is then covered with the tile adhesive and tiles. The thin 3mm cables means that the tiler only has to use a little bit of extra adhesive. The mats are 500mm wide and are easily installed by cutting the matting (NOT THE CABLE) and snaking the mat backwards and forwards filling in the area to be heated.

Specifications
BrandRadiant
CategoryFloor Heating
Model NumberUTCMK150-2250W
Warranty10 years (2 years on Thermostat)
Use InLiving Areas
Mats Included0.5m x 16.0m (8.0sqm), 0.5m x 14.0m (7.0sqm)
Kit IncludesHeating Cable on Mat, Cable Alarm, Cloth Duct Tape, Full Instructions
Wattage2250 W
Watts per Square Metre150W per sqm
IP RatingIPX7
Cable Thickness3 mm
Floor Heating TypeUnder tile
Kit TypeCable mat kit
Suits RoomLiving areas
Coverage17.0 to 18.0sqm
Kit Size15
Cable Length0

Our under tile floor heating kit is perfect for putting floor heating under tiles, where the floor cannot be screeded. The cable is attached directly to a mat, that is installed on the base surface and is then covered with the tile adhesive and tiles. The thin 3mm cables means that the tiler only has to use a little bit of extra adhesive. The mats are 500mm wide and are easily installed by cutting the matting (NOT THE CABLE) and snaking the mat backwards and forwards filling in the area to be heated.

Features

  • Under Tile
  • Cable Mat Kit
  • 17.0 to 18.0sqm coverage
  • Use In: Living Areas
  • Mats Included: 0.5m x 16.0m (8.0sqm), 0.5m x 14.0m (7.0sqm)
  • Kit Includes: Heating Cable on Mat, Cable Alarm, Cloth Duct Tape, Full Instructions
  • Standard 240V
  • Wattage: 2250 W
  • Watts per Sqm: 150W per sqm
  • IP Rating: IPX7
  • Cable Thickness: 3 mm
  • Warranty: 10 years (2 years on Thermostat)

Specifications

  • Category: Floor Heating
  • Model Number: UTCMK150-2250W
  • Use In: Living Areas
  • Mats Included: 0.5m x 16.0m (8.0sqm), 0.5m x 14.0m (7.0sqm)
  • Kit Includes: Heating Cable on Mat, Cable Alarm, Cloth Duct Tape, Full Instructions
  • Wattage: 2250 W
  • Watts per Square Metre: 150W per sqm
  • IP Rating: IPX7
  • Cable Thickness: 3 mm
  • Floor Heating Type: Under tile
  • Kit Type: Cable mat kit
  • Suits Room: Living areas
  • Coverage: 17.0 to 18.0sqm
  • Kit Size: 15
  • Cable Length: 0
Downloads2

Datasheet or Technical Drawings

Under Tile Cable MAT Kit InstallationPDF

Warranty

Under Floor Heating Kits Warranty Registration FormPDF
Warranty & Care

Warranty

Radiant warranty period for this product: 10 years (2 years on Thermostat).
