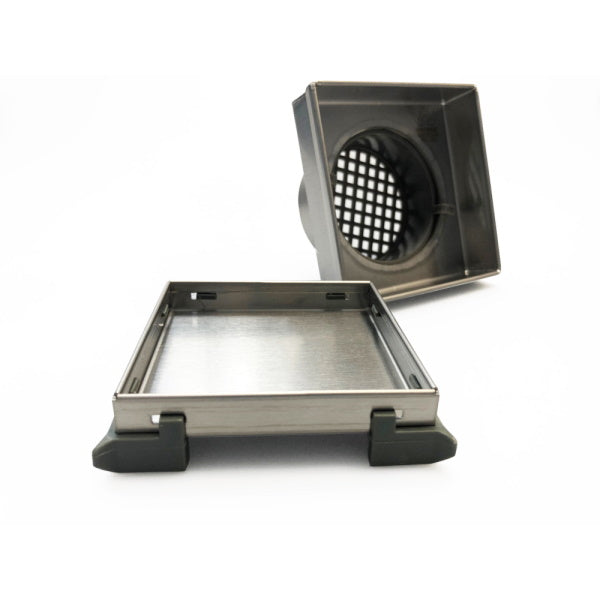

Radiant Square Tile Insert Floor Grate (Brushed Satin) 150mm x 150mm (74mm Outlet) (316-RGS-150-74)
Radiant Square Tile Insert Floor Grate (Brushed Satin) 150mm x 150mm (74mm Outlet) (316-RGS-150-74) 2
Radiant Square Tile Insert Floor Grate (Brushed Satin) 150mm x 150mm (74mm Outlet) (316-RGS-150-74) 3
Radiant Tile Insert Square Floor Waste - Brushed Satin

Free shipping on orders over $1,000.00 (bulky items $100.00 each), Australia-wide

Radiant Tile Insert Square Floor Waste - Brushed Satin

$106.00

Trade pricing availableApply

SKU 316-RGS-150-74

How to purchase

Your store

Click & Collect

Order online and collect in store

We confirm availability at Alexandria and let you know when your order is ready to collect.

Delivery

Enter your suburb or postcode for a delivery estimate.

Overview

Radiant tile insert floor wastes and channel drains are manufactured from premium 316 grade stainless steel and are available in a wide variety of sizes and outlets, allowing you to integrate any tile or stone to seamlessly match the rest of the bathroom.

Specifications
Construction
Material316 Grade Stainless Steel
Details
BrandRadiant
CategoryFloor Grates
Model Number316-RGS-150-74
FinishBrushed Satin
Material316 Grade Stainless Steel
Warranty7 years
Width150 mm
Length150 mm
Depth54 mm
Insert Depth12 mm
Outlet Diameter74 mm
Waste Pipe Size80 mm
Grate StyleSquare tile insert floor wastes
Suits Waste Pipe Size80mm
Suitable for Use in ShowersTrue

Radiant tile insert floor wastes and channel drains are manufactured from premium 316 grade stainless steel and are available in a wide variety of sizes and outlets, allowing you to integrate any tile or stone to seamlessly match the rest of the bathroom.

Features

  • 316 Grade Stainless Steel
  • Square Tile Insert Floor Wastes
  • Brushed Satin
  • Width: 150 mm
  • Length: 150 mm
  • Depth: 54 mm
  • Insert Depth: 12 mm
  • Outlet Diameter: 74mm
  • Waste Pipe Size: 80mm
  • Puddle flange is not included with this grate
  • Suitable For Use In Showers
  • Warranty: 7 years

Specifications

  • Category: Floor Grates
  • Model Number: 316-RGS-150-74
  • Finish: Brushed Satin
  • Material: 316 Grade Stainless Steel
  • Width: 150 mm
  • Length: 150 mm
  • Depth: 54 mm
  • Insert Depth: 12 mm
  • Outlet Diameter: 74 mm
  • Waste Pipe Size: 80 mm
  • Grate Style: Square tile insert floor wastes
  • Suits Waste Pipe Size: 80mm
  • Suitable for Use in Showers: True

Brushed Satin

A smooth matte finish with a soft sheen and cool silvery-gray tone. Subtle and sophisticated, it suits both modern and classic spaces while offering a refined, fingerprint-resistant surface that is low-maintenance and elegant.

Downloads2

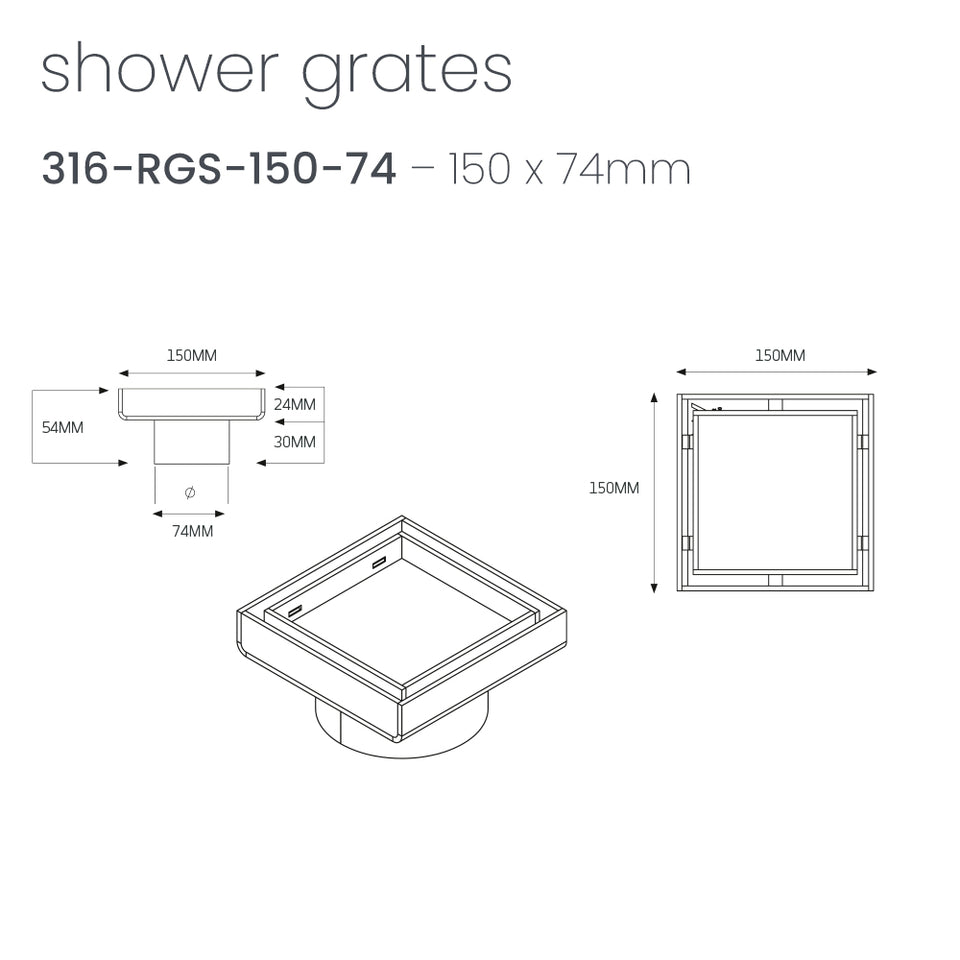

Datasheet or Technical Drawings

Technical Specification - 316-RGS-150-74PDF

Warranty

Floor Grates WarrantyPDF
Warranty & Care

Warranty

Radiant warranty period for this product: 7 years.
