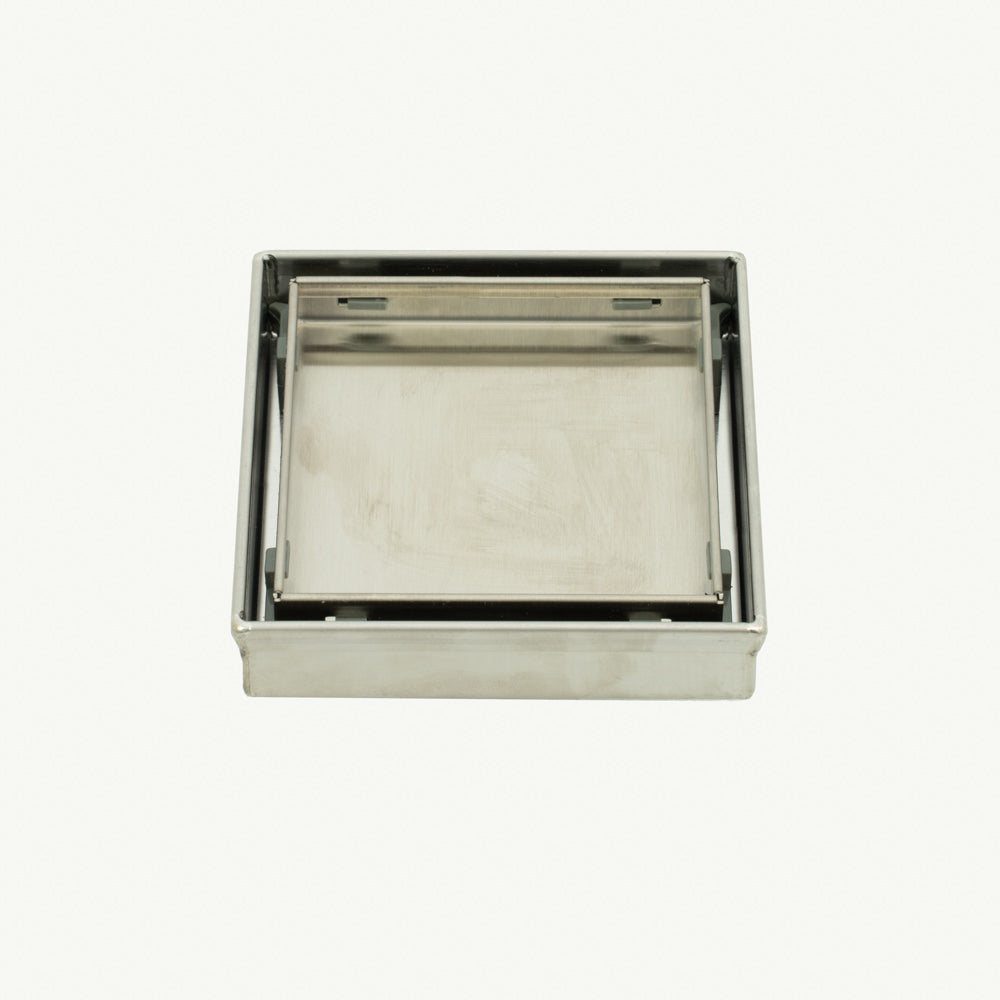

Radiant Tile Insert Square Floor Waste - Brushed Satin

Free shipping on orders over $1,000.00 (bulky items $100.00 each), Australia-wide

Radiant Tile Insert Square Floor Waste - Brushed Satin

$69.00

Trade pricing availableApply

SKU 316-RGS-100-38

How to purchase

Your store

Click & Collect

Order online and collect in store

We confirm availability at Alexandria and let you know when your order is ready to collect.

Delivery

Enter your suburb or postcode for a delivery estimate.

Overview

Radiant tile insert floor wastes and channel drains are manufactured from premium 316 grade stainless steel and are available in a wide variety of sizes and outlets, allowing you to integrate any tile or stone to seamlessly match the rest of the bathroom.

Specifications
Construction
Material316 Grade Stainless Steel
Details
BrandRadiant
CategoryFloor Grates
Model Number316-RGS-100-38
FinishBrushed Satin
Material316 Grade Stainless Steel
Warranty7 years
Width100 mm
Length100 mm
Insert Depth12 mm
Outlet Diameter38 mm
Waste Pipe Size40mm or 50mm with a puddle flange
Grate StyleSquare tile insert floor wastes
Suits Waste Pipe Size40mm or 50mm with a puddle flange
Suitable for Use in ShowersFalse

Radiant tile insert floor wastes and channel drains are manufactured from premium 316 grade stainless steel and are available in a wide variety of sizes and outlets, allowing you to integrate any tile or stone to seamlessly match the rest of the bathroom.

Features

  • 316 Grade Stainless Steel
  • Square Tile Insert Floor Wastes
  • Brushed Satin
  • Width: 100 mm
  • Length: 100 mm
  • Insert Depth: 12 mm
  • Outlet Diameter: 38mm
  • Waste Pipe Size: 40mm or 50mm with a puddle flange
  • Puddle flange is not included with this grate
  • NOT recommended for use directly below unrestricted overhead rain showers
  • Warranty: 7 years

Specifications

  • Category: Floor Grates
  • Model Number: 316-RGS-100-38
  • Finish: Brushed Satin
  • Material: 316 Grade Stainless Steel
  • Width: 100 mm
  • Length: 100 mm
  • Insert Depth: 12 mm
  • Outlet Diameter: 38 mm
  • Waste Pipe Size: 40mm or 50mm with a puddle flange
  • Grate Style: Square tile insert floor wastes
  • Suits Waste Pipe Size: 40mm or 50mm with a puddle flange
  • Suitable for Use in Showers: False

Brushed Satin

A smooth matte finish with a soft sheen and cool silvery-gray tone. Subtle and sophisticated, it suits both modern and classic spaces while offering a refined, fingerprint-resistant surface that is low-maintenance and elegant.

Downloads2

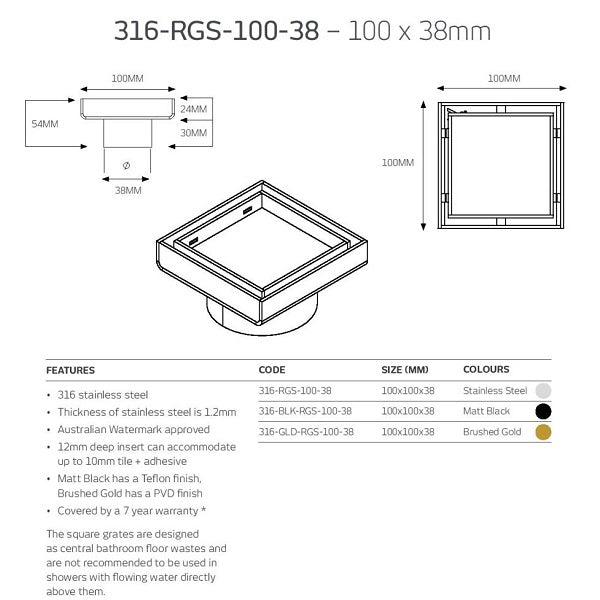

Datasheet or Technical Drawings

Technical Specification - 316-RGS-100-38PDF

Warranty

Floor Grates WarrantyPDF
Warranty & Care

Warranty

Radiant warranty period for this product: 7 years.
