Radiant Tile Insert Linear Shower Grate - Brushed Satin
$230.00
SKU 316-RGL-700-90
How to purchase
Your store
Our only showroom for now.
Delivery
Enter your suburb or postcode for a delivery estimate.
Overview
Overview

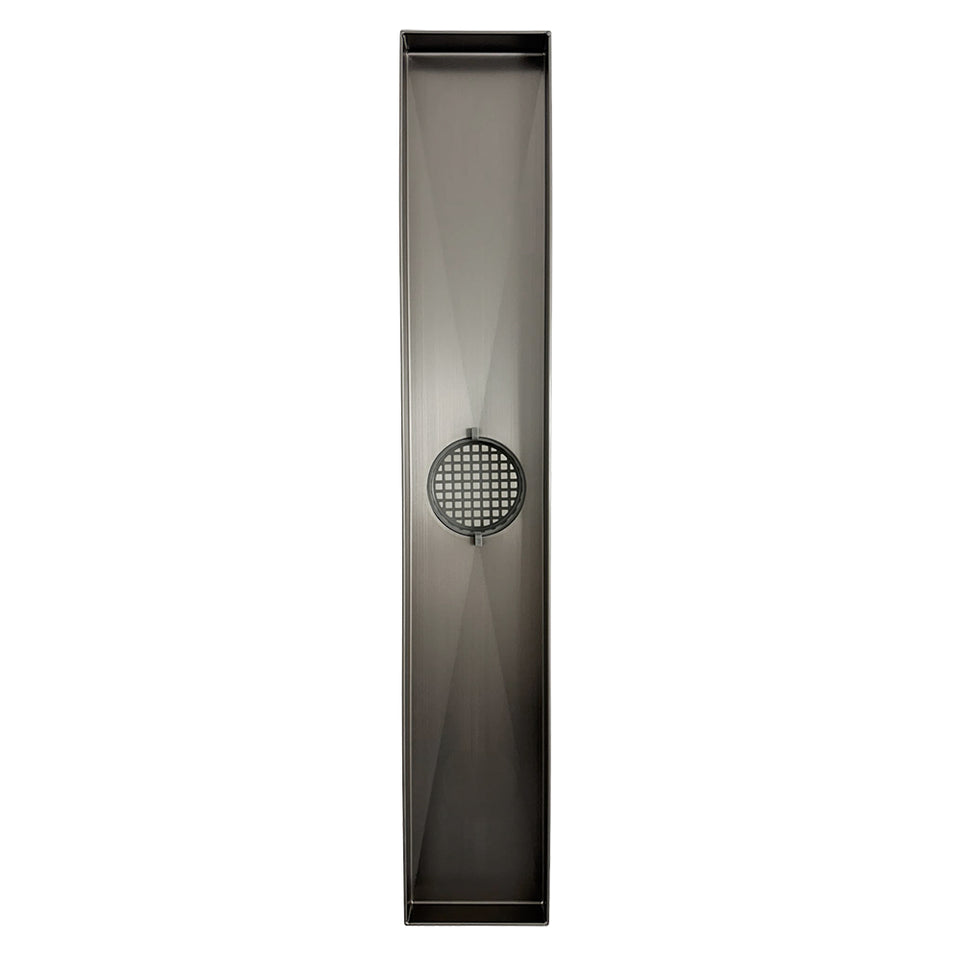

Radiant tile insert floor wastes and channel drains are manufactured from premium 316 grade stainless steel and are available in a wide variety of sizes and outlets, allowing you to integrate any tile or stone to seamlessly match the rest of the bathroom.
Specifications
Specifications
| Construction | |
| Material | 316 Grade Stainless Steel |
|---|---|
| Details | |
| Brand | Radiant |
|---|---|
| Category | Floor Grates |
| Model Number | 316-RGL-700-90 |
| Finish | Brushed Satin |
| Material | 316 Grade Stainless Steel |
| Warranty | 7 years |
| Width | 100 mm |
| Length | 700 mm |
| Depth | 52 mm |
| Insert Depth | 12 mm |
| Outlet Diameter | 90 mm |
| Waste Pipe Size | 100 mm |
| Grate Style | Linear tile insert channels |
| Suits Waste Pipe Size | 100mm |
| Suitable for Use in Showers | True |
Radiant tile insert floor wastes and channel drains are manufactured from premium 316 grade stainless steel and are available in a wide variety of sizes and outlets, allowing you to integrate any tile or stone to seamlessly match the rest of the bathroom.
Features
- 316 Grade Stainless Steel
- Linear Tile Insert Channels
- Brushed Satin
- Width: 100 mm
- Length: 700 mm
- Depth: 52 mm
- Insert Depth: 12 mm
- Outlet Diameter: 90mm
- Waste Pipe Size: 100mm
- Puddle flange is not included with this grate
- Fixed Central Outlet
- Suitable For Use In Showers
- Warranty: 7 years
Specifications
- Category: Floor Grates
- Model Number: 316-RGL-700-90
- Finish: Brushed Satin
- Material: 316 Grade Stainless Steel
- Width: 100 mm
- Length: 700 mm
- Depth: 52 mm
- Insert Depth: 12 mm
- Outlet Diameter: 90 mm
- Waste Pipe Size: 100 mm
- Grate Style: Linear tile insert channels
- Suits Waste Pipe Size: 100mm
- Suitable for Use in Showers: True
Brushed Satin
A smooth matte finish with a soft sheen and cool silvery-gray tone. Subtle and sophisticated, it suits both modern and classic spaces while offering a refined, fingerprint-resistant surface that is low-maintenance and elegant.
Downloads2
Downloads

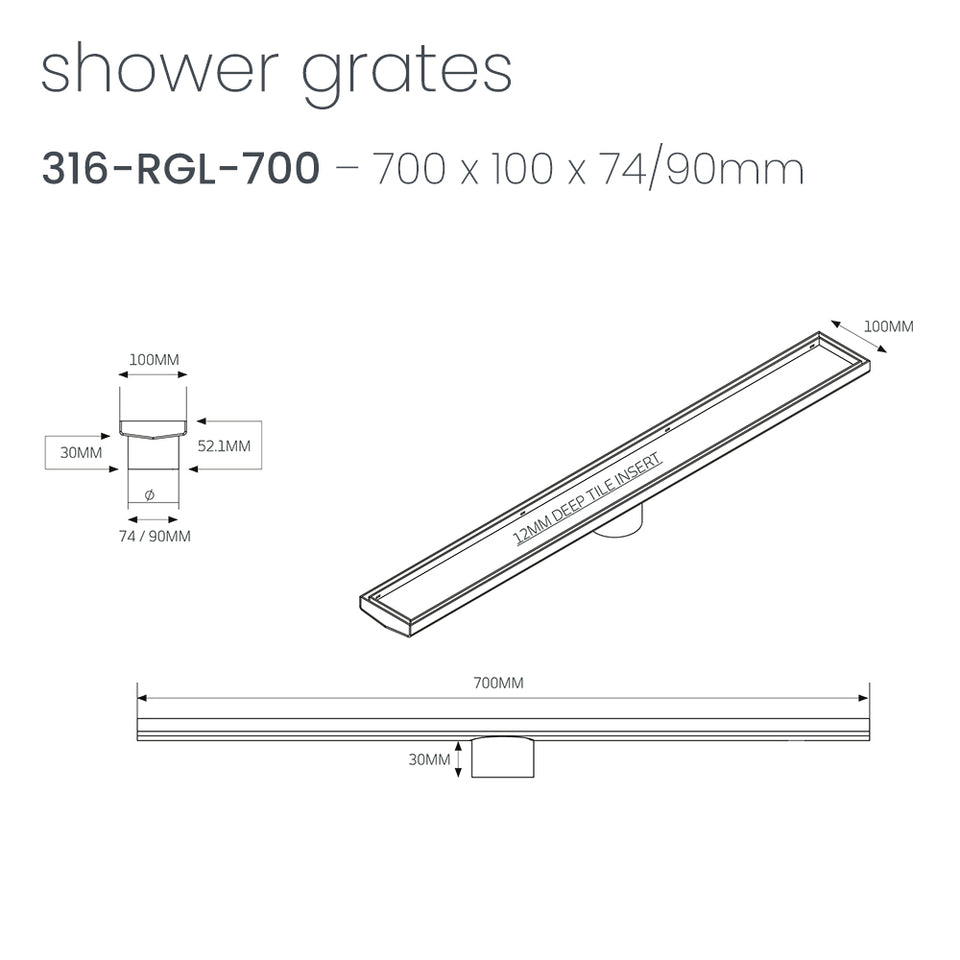

Datasheet or Technical Drawings
Technical Specification - 316-RGL-700Warranty
Floor Grates WarrantyWarranty & Care
Warranty & Care
Warranty
Radiant warranty period for this product: 7 years.
