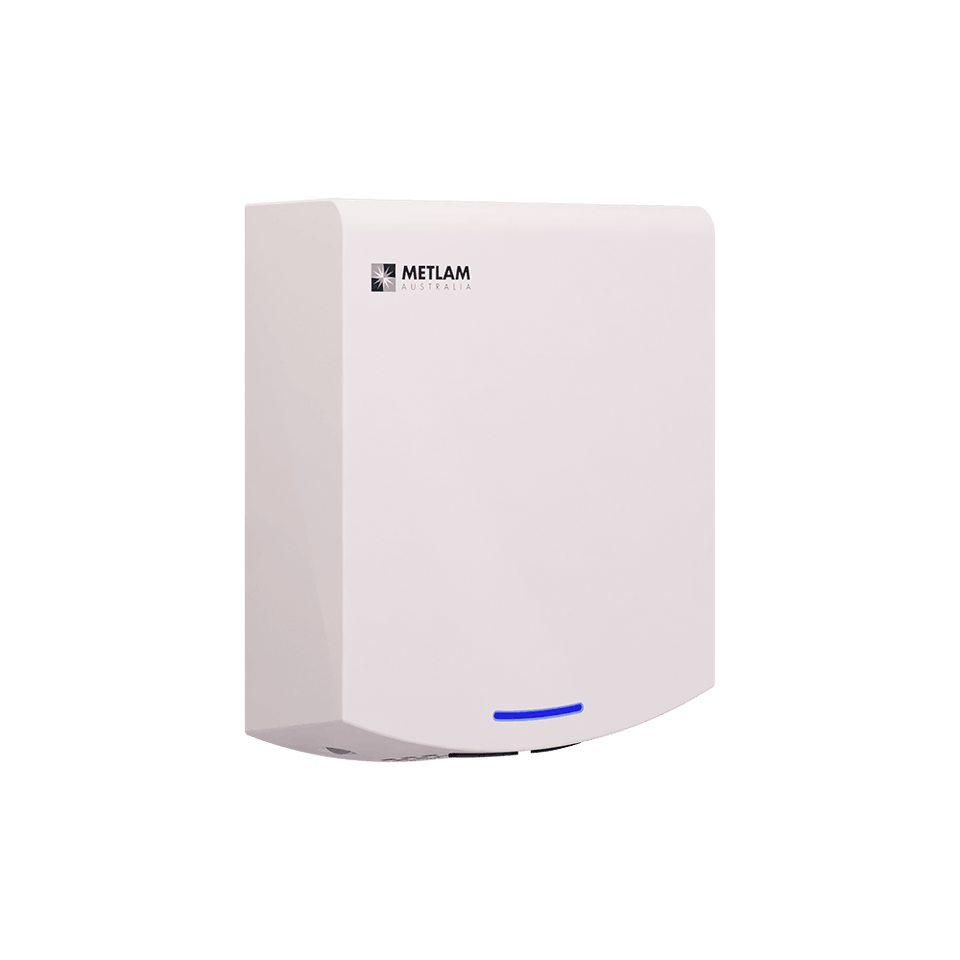

ML_ECLIPSE01_WHT | Eclipse Slimline Automatic Operation Hand Dryer in White
ML_ECLIPSE01_WHT | Eclipse Slimline Automatic Operation Hand Dryer in White
ML_ECLIPSE_DESIGNER | Eclipse Slimline Automatic Operation Hand Dryer in Designer Black

Free shipping on orders over $1,000.00 (bulky items $100.00 each), Australia-wide

Metlam Auto Operation Hand Dryer In

$750.00

Trade pricing availableApply

SKU ML_ECLIPSE01_WHT

Finish: White

How to purchase

Your store

Click & Collect

Order online and collect in store

We confirm availability at Alexandria and let you know when your order is ready to collect.

Delivery

Enter your suburb or postcode for a delivery estimate.

Overview
  • #304 Grade Stainless Steel Case
  • Drying Time of 15 Seconds or Less
  • Can Be Hard-Wired By An Electrician Or Used With The Cord & Plug Provided
  • Automatic Infrared Touch-Free Operation Sensor

Specifications

  • Material: 1.2mm #304 Stainless Steel Casing
  • Finish: White: White Powder Coat; Black: Designer Black
  • Mounting: Surface Mount Concealed Fix
  • Features: Can Be Hard-Wired By An Electrician Or Used With The Cord & Plug Provided Automatic Infrared Touch-Free Operation Sensor Heater Can Be Switched On or Off Theft-Resistant Case (2x security pin hex screws)
  • Voltage: 220-240V AC
  • Frequency: 50/60Hz
  • Wattage: 0.84-1.0kW
  • Amperage: 3.8-4.2A
  • Energy Per Dry: 2.4-4.17Wh
  • Standby Power: 0.3-0.4W
  • Rated Power: 575-1000W
  • Drying Time: 15 seconds or less
  • Air Speed: 342-414km/h
  • Operating Airflow: 24.72l/s
  • Warm Air Temperature: Ambient +30°
  • Sound Level: 68.6-72.3dB(A) @ 1m
  • Motor Type: Brushed 500W
  • Motor Speed: 16,000-29,000 rpm
  • Motor Cut-Off Time: 60 seconds auto shut off
  • IP Rating: IP24
  • Net Weight: 4.2kg
  • Warranty: 5 (Five) years for Parts only and 3 (Three) years for Replacement or Repair
  • Spare Parts: Replacement Printed Circuit Board & Sensor Module = ML_ECLIPSE_PCB Replacement Brushes (Pair) = ML_ECLIPSE_BRUSHES Replacement Motor = ML_ECLIPSEMOTOR Replacement Heating Element = ML_ECLIPSE_ELEMENT Replacement Light = ML_ECLIPSE_LED

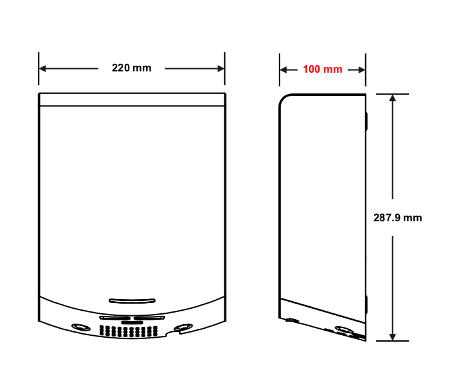

  • Dimensions: 288mmH x 220mmW x 100mmD
Specifications
BrandMetlam Australia
Product CodeML_ECLIPSE01_WHT (White); ML_ECLIPSE_DESIGNER (Black)
Product TypeHand Dryers
Material1.2mm #304 Stainless Steel Casing
FinishWhite: White Powder Coat; Black: Designer Black
MountingSurface Mount Concealed Fix
FeaturesCan Be Hard-Wired By An Electrician Or Used With The Cord & Plug Provided Automatic Infrared Touch-Free Operation Sensor Heater Can Be Switched On or Off Theft-Resistant Case (2x security pin hex screws)
Voltage220-240V AC
Frequency50/60Hz
Wattage0.84-1.0kW
Amperage3.8-4.2A
Energy Per Dry2.4-4.17Wh
Standby Power0.3-0.4W
Rated Power575-1000W
Drying Time15 seconds or less
Air Speed342-414km/h
Operating Airflow24.72l/s
Warm Air TemperatureAmbient +30°
Sound Level68.6-72.3dB(A) @ 1m
Motor TypeBrushed 500W
Motor Speed16,000-29,000 rpm
Motor Cut-Off Time60 seconds auto shut off
IP RatingIP24
Net Weight4.2kg
Warranty5 (Five) years for Parts only and 3 (Three) years for Replacement or Repair
Spare PartsReplacement Printed Circuit Board & Sensor Module = ML_ECLIPSE_PCB Replacement Brushes (Pair) = ML_ECLIPSE_BRUSHES Replacement Motor = ML_ECLIPSEMOTOR Replacement Heating Element = ML_ECLIPSE_ELEMENT Replacement Light = ML_ECLIPSE_LED
Dimensions288mmH x 220mmW x 100mmD
ComplianceThis unit is accessible compliant when installed in accordance with AS1428.1. guidelines.
Standards referencedAS 1428.1
CAD / BIM filesRevit available from metlam.com.au
  • #304 Grade Stainless Steel Case
  • Drying Time of 15 Seconds or Less
  • Can Be Hard-Wired By An Electrician Or Used With The Cord & Plug Provided
  • Automatic Infrared Touch-Free Operation Sensor

Specifications

  • Material: 1.2mm #304 Stainless Steel Casing
  • Finish: White: White Powder Coat; Black: Designer Black
  • Mounting: Surface Mount Concealed Fix
  • Features: Can Be Hard-Wired By An Electrician Or Used With The Cord & Plug Provided Automatic Infrared Touch-Free Operation Sensor Heater Can Be Switched On or Off Theft-Resistant Case (2x security pin hex screws)
  • Voltage: 220-240V AC
  • Frequency: 50/60Hz
  • Wattage: 0.84-1.0kW
  • Amperage: 3.8-4.2A
  • Energy Per Dry: 2.4-4.17Wh
  • Standby Power: 0.3-0.4W
  • Rated Power: 575-1000W
  • Drying Time: 15 seconds or less
  • Air Speed: 342-414km/h
  • Operating Airflow: 24.72l/s
  • Warm Air Temperature: Ambient +30°
  • Sound Level: 68.6-72.3dB(A) @ 1m
  • Motor Type: Brushed 500W
  • Motor Speed: 16,000-29,000 rpm
  • Motor Cut-Off Time: 60 seconds auto shut off
  • IP Rating: IP24
  • Net Weight: 4.2kg
  • Warranty: 5 (Five) years for Parts only and 3 (Three) years for Replacement or Repair
  • Spare Parts: Replacement Printed Circuit Board & Sensor Module = ML_ECLIPSE_PCB Replacement Brushes (Pair) = ML_ECLIPSE_BRUSHES Replacement Motor = ML_ECLIPSEMOTOR Replacement Heating Element = ML_ECLIPSE_ELEMENT Replacement Light = ML_ECLIPSE_LED
  • Dimensions: 288mmH x 220mmW x 100mmD

This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.

Standards referenced by Metlam for this product: AS 1428.1.

Downloads5

Datasheet or Technical Drawings

Installation instructionsPDF Mounting templatePDF Supporting DocumentationPDF

Warranty + Care

Care & MaintenancePDF Warranty StatementPDF
