Metlam Antimicrobial Moda Bumper
$32.00
SKU ANMB_MODAHINGE
How to purchase
Your store
Our only showroom for now.
Delivery
Enter your suburb or postcode for a delivery estimate.
Overview
Overview
- Diecast Zinc Alloy ZP3
- Brass Shaft, Nylon Inserts, ABS Snap-On Covers
- Antimicrobial Coated
- Reversible Hold Open/Hold Closed
- Concealed Screw Fix
- Liftoff Capability
- Available in Left Hand or Right Hand - Please Specify
Specifications
- Material: Diecast Zinc, Alloy ZP3 Brass Shaft Nylon Inserts ABS Snap-On Covers
- Finish: Antimicrobial Coated
- Mounting: Concealed Screw Fix Universal Screw Fixings Supplied
- Features: Spring-assisted door opening/door closing Fully Adjustable Spring to suit door - No Tension to Full Tension Spring Reversible Hold Open / Hold Closed Liftoff capability
- Minimum Hinge Clearance For Lift-Off Hinges: 35mm
- Load Rating: 15Kg per hinge For optimum performance - 2 hinges per door up to 30Kgs For doors over 30Kg allow for 15Kg per hinge Note: 3 Hinges per door is recommended to prevent door bowing

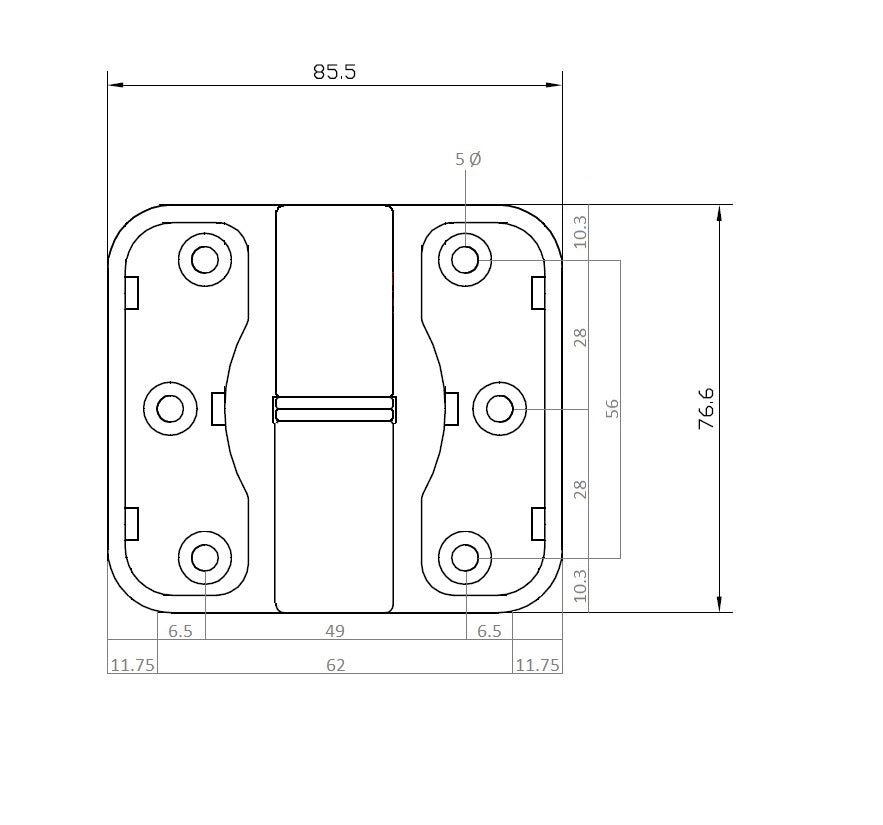

- Dimensions: 77mmH x 85mmW
Specifications
Specifications
| Brand | Metlam Australia |
|---|---|
| Product Code | MODA_SPRING_ANMB |
| Product Type | Hinges |
| Material | Diecast Zinc, Alloy ZP3 Brass Shaft Nylon Inserts ABS Snap-On Covers |
| Finish | Antimicrobial Coated |
| Mounting | Concealed Screw Fix Universal Screw Fixings Supplied |
| Features | Spring-assisted door opening/door closing Fully Adjustable Spring to suit door - No Tension to Full Tension Spring Reversible Hold Open / Hold Closed Liftoff capability |
| Minimum Hinge Clearance For Lift-Off Hinges | 35mm |
| Load Rating | 15Kg per hinge For optimum performance - 2 hinges per door up to 30Kgs For doors over 30Kg allow for 15Kg per hinge Note: 3 Hinges per door is recommended to prevent door bowing |
| Dimensions | 77mmH x 85mmW |
| Cross-reference codes | MODAHINGE_ANMB |
- Diecast Zinc Alloy ZP3
- Brass Shaft, Nylon Inserts, ABS Snap-On Covers
- Antimicrobial Coated
- Reversible Hold Open/Hold Closed
- Concealed Screw Fix
- Liftoff Capability
- Available in Left Hand or Right Hand - Please Specify
Specifications
- Material: Diecast Zinc, Alloy ZP3 Brass Shaft Nylon Inserts ABS Snap-On Covers
- Finish: Antimicrobial Coated
- Mounting: Concealed Screw Fix Universal Screw Fixings Supplied
- Features: Spring-assisted door opening/door closing Fully Adjustable Spring to suit door - No Tension to Full Tension Spring Reversible Hold Open / Hold Closed Liftoff capability
- Minimum Hinge Clearance For Lift-Off Hinges: 35mm
- Load Rating: 15Kg per hinge For optimum performance - 2 hinges per door up to 30Kgs For doors over 30Kg allow for 15Kg per hinge Note: 3 Hinges per door is recommended to prevent door bowing
- Dimensions: 77mmH x 85mmW
- Please specify at the time of ordering Right Hand - MODA_RHSPRING_ANMB or Left Hand - MODA_LHSPRING_ANMB.
- For Bolt Through use 106C_FACEPLATE_SCP Concealed Fix Face Plate.
