Metlam Antimicrobial 106c Hinge
106C_ANMB | 106C Gravity Hinge in Antimicrobial
106C_ANMB | 106C Gravity Hinge in Antimicrobial
106C_ANMB | 106C Gravity Hinge in Antimicrobial
106C_ANMB | 106C Gravity Hinge in Antimicrobial

Metlam Antimicrobial 106c Hinge

$32.00

Trade pricing availableApply

SKU 106C_ANMB

Free shipping on orders over $1,000.00 (bulky items $100.00 each), Australia-wide

How to purchase

Your store

Click & Collect

Order online and collect in store

We confirm availability at Alexandria and let you know when your order is ready to collect.

Delivery

Enter your suburb or postcode for a delivery estimate.

Overview
  • Diecast Zinc Alloy ZP3
  • Brass Shaft, Nylon Inserts, ABS Snap-On Covers
  • Antimicrobial Coated
  • Concealed Screw Fix or Bolt Through
  • Liftoff Capability
  • Available in Hold Open or Hold Closed - Please Specify
  • Available in Left Hand or Right Hand - Please Specify

Specifications

  • Material: Diecast Zinc, Alloy ZP3 #304 Grade Stainless Steel Shaft Nylon Inserts ABS Snap On Covers
  • Finish: Antimicrobial Coated
  • Mounting: Concealed Screw Fix or Bolt Through Universal Screw Fixings Supplied
  • Features: Gravity-assisted door opening/door closing with Lift-Off Capability
  • Minimum Hinge Clearance For Lift-Off Hinges: 30mm
  • Load Rating: 15Kg per hinge For optimum performance - 2 hinges per door up to 30Kgs For doors over 30Kg allow for 15Kg per hinge Note: 3 Hinges per door is recommended to prevent door bowing

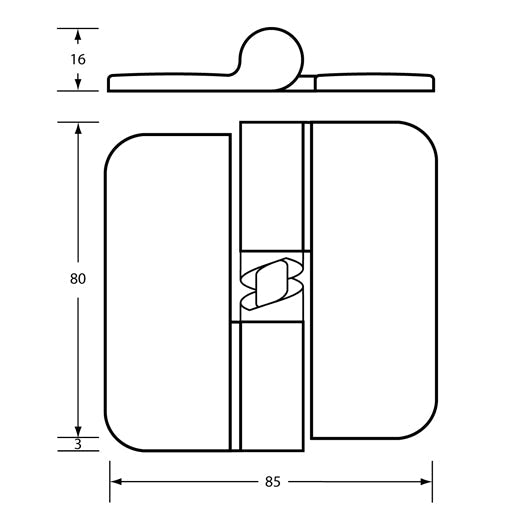

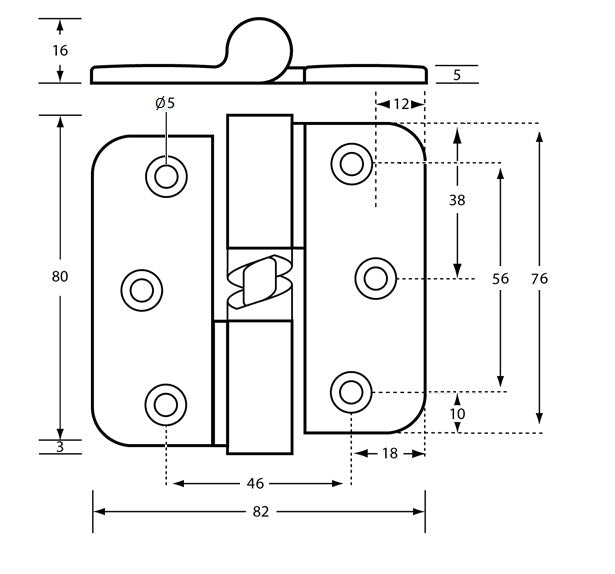

  • Dimensions: 80mmH x 82mmW x 16mmD
Specifications
BrandMetlam Australia
Product Code106C_ANMB
Product TypeAntimicrobial
MaterialDiecast Zinc, Alloy ZP3 #304 Grade Stainless Steel Shaft Nylon Inserts ABS Snap On Covers
FinishAntimicrobial Coated
MountingConcealed Screw Fix or Bolt Through Universal Screw Fixings Supplied
FeaturesGravity-assisted door opening/door closing with Lift-Off Capability
Minimum Hinge Clearance For Lift-Off Hinges30mm
Load Rating15Kg per hinge For optimum performance - 2 hinges per door up to 30Kgs For doors over 30Kg allow for 15Kg per hinge Note: 3 Hinges per door is recommended to prevent door bowing
Dimensions80mmH x 82mmW x 16mmD
  • Diecast Zinc Alloy ZP3
  • Brass Shaft, Nylon Inserts, ABS Snap-On Covers
  • Antimicrobial Coated
  • Concealed Screw Fix or Bolt Through
  • Liftoff Capability
  • Available in Hold Open or Hold Closed - Please Specify
  • Available in Left Hand or Right Hand - Please Specify

Specifications

  • Material: Diecast Zinc, Alloy ZP3 #304 Grade Stainless Steel Shaft Nylon Inserts ABS Snap On Covers
  • Finish: Antimicrobial Coated
  • Mounting: Concealed Screw Fix or Bolt Through Universal Screw Fixings Supplied
  • Features: Gravity-assisted door opening/door closing with Lift-Off Capability
  • Minimum Hinge Clearance For Lift-Off Hinges: 30mm
  • Load Rating: 15Kg per hinge For optimum performance - 2 hinges per door up to 30Kgs For doors over 30Kg allow for 15Kg per hinge Note: 3 Hinges per door is recommended to prevent door bowing
  • Dimensions: 80mmH x 82mmW x 16mmD
  • 106C_LHHC_ANMB: Left Hand, Hold Closed - Assists the door to move towards a Hold Closed Position
  • 106C_LHHO_ANMB: Left Hand, Hold Open - Assists the door to moved towards a Hold Open Position
  • 106C_RHHC_ANMB: Right Hand, Hold Closed - Assists the door to move towards a Hold Closed Position
  • 106C_RHHO_ANMB: Right Hand, Hold Open - Assists the door to move towards a Hold Open Position
Downloads3

Datasheet or Technical Drawings

Installation instructionsPDF

Warranty + Care

Care & MaintenancePDF Warranty StatementPDF
