Hotwire Undertile Mat 600 watts 4m2

The element is only 3.6mm thick. It is ideal for both both new floor construction and retrofit in existing buildings.

Hotwire Heating Mats offer all the benefits of Hotwire Under Tile Heating with the added bonus of the element being already fixed to a mesh. This makes installation a breeze as you simply roll out the system across your floor. As with all Hotwire products the fully programmable thermostat is standard. You just need to choose which colour you want!

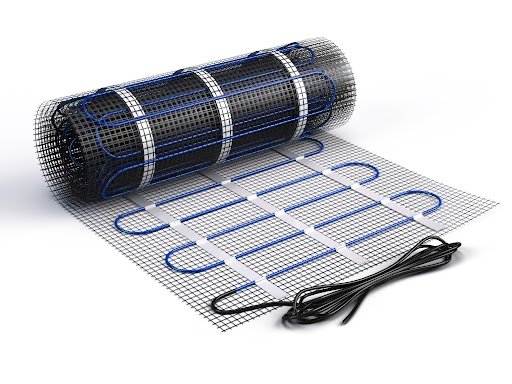

Hotwire Heating mats are a high-quality heating mat with single cold tail. The heating cable is evenly pre-spaced on self adhesive fibreglass mesh.

All Hotwire Floor Heating systems include, Heating Element, Fully programmable Touch Screen Thermostat, Alarm, Tape, Manual, Temperature Probe. WiFi and Dual Thermostats are available as an upgrade.

What is included

• Heating Element
• Fully programmable Touch Screen Thermostat
• Alarm
• Tape
• Manual
• Temperature Probe

Specifications

• Brand: Hotwire Heating
• Category: Electric Floor Heating
• Range: Under Tile Heating Mat
• Model Number: HWHM600
• Power: 600 W
• Heat Output: 150 W/m2
• Coverage Area: 4 m2
• Element: Pre-spaced cable on self-adhesive fibreglass mesh, 3.6 mm
• Thermostat: Included: WiFi thermostat
• Warranty: Lifetime warranty on floor heating elements (conditions apply)

Good to know

Is under tile heating safe? Yes it is, completely. Here is the boring technical information. All HOTWIRE™ under tile heating elements exceed the requirements of IEC800 standard for heating cables. We recommend the installation of a Residual Current Device. The element is silent and there are no odours. We use the latest technology in the manufacture of HOTWIRE™ elements. The element is insulated with two layers of PTFE Teflon for added safety and protection. The Earth is a full copper braided screen. The heating wire is multi strand, which provides flexibility and durability.

Do under tile heating systems require any maintenance? No. HOTWIRE™ is a maintenance free heating system. There are no heating ducts or filters to clean and the heating element does not have any moving parts to replace or overhaul. Be sure to consult with your installer to determine cable location prior to drilling. We recommend alternative to drilling holes in the tile for doorstops and other fixtures.

How long does it take to heat the room? The timer will switch the element on and the tiles will heat up within 20 minutes. The room will be warm within 30 -60 minutes depending on the design, ceiling height, and insulation standards.

Can Hotwire be installed under carpet or wooden flooring? Yes it can. You will just to check the manufacturers specifications of the product you are using.

Can I install floor heating myself? No. Floor heating in Australia must be installed by a licensed electrical contractor. Check with your local electrician if you are unsure.

Will floor heating crack my tiles? No. Tiles are fired in a kiln at very high temperatures, so a floor heating element will not damage the tiles or grout. Many retail tile stores sell and recommend Hotwire alongside their tiles for this reason.
