Geberit Duofix Sigma 8 Cistern and Frame (4.5/3L)

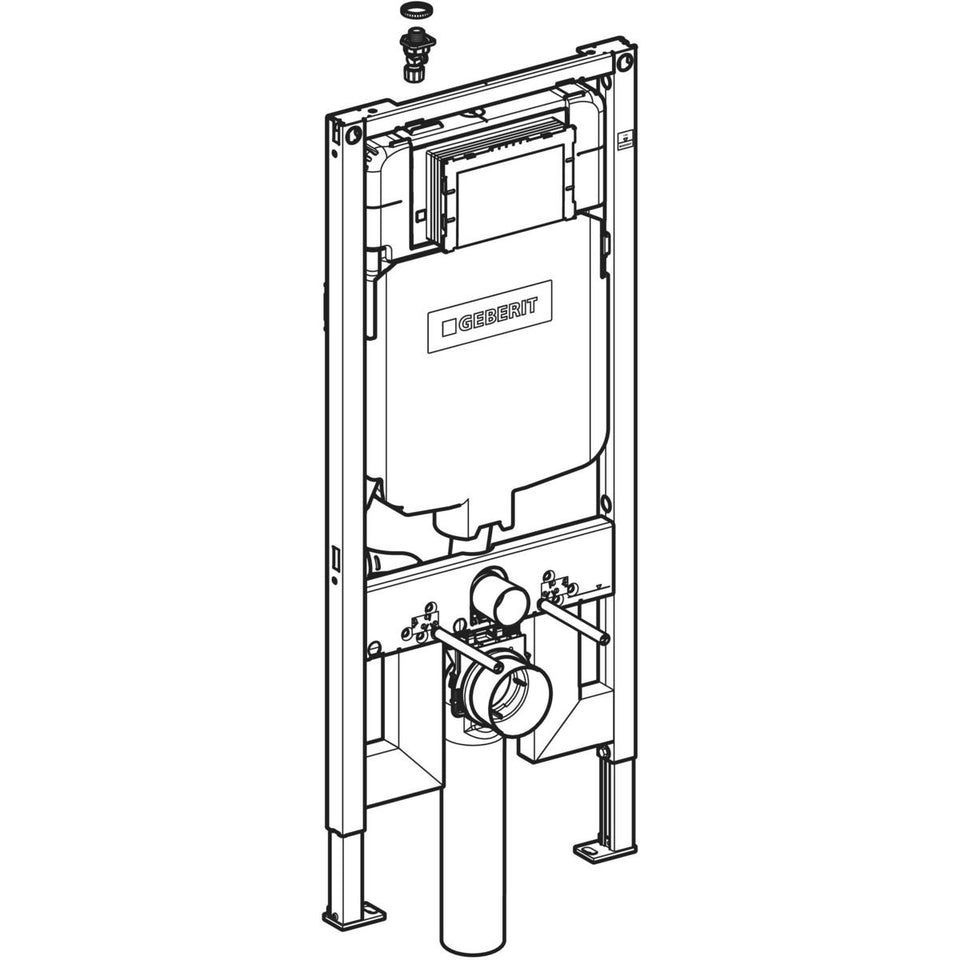

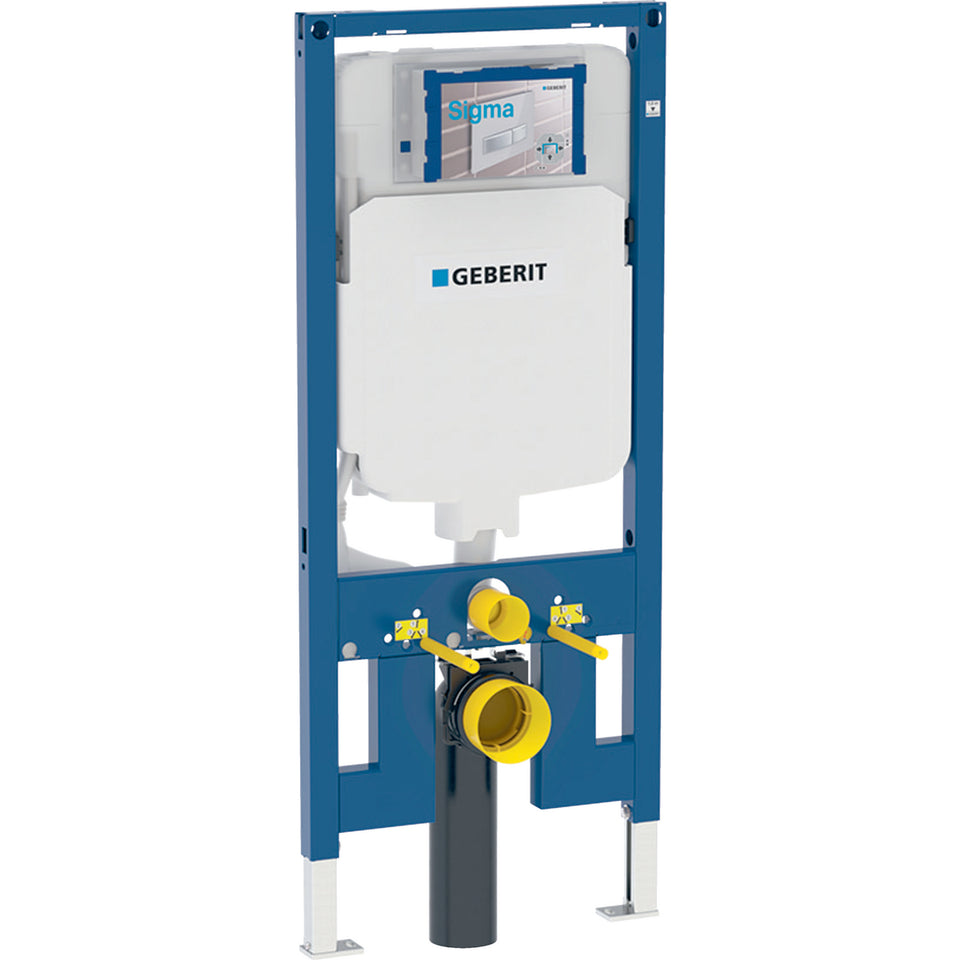

111.698.00.1 | Geberit Duofix element for wall-hung WC, 114 cm, with Sigma concealed cistern 8 cm
111.698.00.1 | Geberit Duofix element for wall-hung WC, 114 cm, with Sigma concealed cistern 8 cm
111.698.00.1 | Geberit Duofix element for wall-hung WC, 114 cm, with Sigma concealed cistern 8 cm
111.698.00.1 | Geberit Duofix element for wall-hung WC, 114 cm, with Sigma concealed cistern 8 cm

Large itemShips on a pallet — $100.00 delivery · delivery guidelines

Geberit Duofix Sigma 8 Cistern and Frame (4.5/3L)

35% Off

$597.00 $921.00

Trade pricing availableApply

SKU 111.698.00.1

How to purchase

Your store

Click & Collect

Order online and collect in store

We confirm availability at Alexandria and let you know when your order is ready to collect.

Delivery

Enter your suburb or postcode for a delivery estimate.

Overview
  • Extremely slim design
  • Cisterns can be easily serviced
  • Easy and quick to install
  • Use only Sigma Push-Access Plates (See related items), flush and access plates are available separately.
  • A one piece blow moulded tank for a secure water tight seal
  • Available in either 6/3L or 4.5/3L dual-flush volumes

    Description

    Geberit Sigma cistern hits all the right buttons as they are easy to install, tough and virtually maintenance free.

    Extremely slim design: Geberit cisterns can fit between studs, even in walls with a 75 mm cavity. Swiss know how and technology has delivered our slimmest inwall cistern ever produced. It may be thin, but includes insulation against condensation and other distinguishing features. The Duofix element for a wall hung pan is capable of supporting 400kg.

    Cisterns can be easily serviced: The beautifully designed flush plates, of varying finishes, provide easy access to the moving parts.

    A one piece blow moulded tank for a secure water tight seal: Geberit is Swiss, so of course you can feel confident in our seamless state of the art manufacturing process. Each tank is pressure tested for absolute water tightness before assembly, we guarantee it.

    Easy and quick to install: Geberit's experience ensures products are reliable and the best in the category. They are quick and easy to install. All necessary materials and parts are included.

    Available in either 6\/3L or 4.5\/3L dual-flush volumes

    WELS & Watermark Certification

    • WELS 4 star rated
    • Dual flush, 4.5/3.0L (3.4L average flush)
    • WELS Registration Number: L05089
    • All Geberit toilet pans, cisterns and components are Watermark Certified

    Find out more about WELS and Watermark certification and the important role they play in helping you choose water-efficient and safe products that are manufactured to strict Australian plumbing and building standards.

    What's In The Box

    • 1 x Under-counter cistern
    • 1 x Fixing kit
    • 1 x Installation instructions
    Specifications
    BrandGeberit
    Article number111.698.00.1
    GTIN/EAN4025416544319
    B / width (cm)50 cm
    H / height (cm)114 cm
    T / depth (cm)8 cm
    Flow pressure (kPa) - min. to max.10–1000 kPa
    Operating temperature, water (°C) - max.25 °C
    Flush volume, factory setting (l)4.5 / 3 l
    Flush volume large, adjustment range (l)Flush volume large, adjustment range; 4.5 / 6 / 7.5 l
    Product typeElements for WCs
    CAD files2D/3D DWG and DXF published by Geberit for article 111.698.00.1
    Package Contents1x Geberit Sigma8 Duofix Concealed Cistern

    Geberit article 111.698.00.1 - Geberit Duofix element for wall-hung WC, 114 cm, with Sigma concealed cistern 8 cm

    • B / width (cm): 50 cm
    • H / height (cm): 114 cm
    • T / depth (cm): 8 cm
    • Flow pressure (kPa) - min. to max.: 10–1000 kPa
    • Operating temperature, water (°C) - max.: 25 °C
    • Flush volume, factory setting (l): 4.5 / 3 l
    • Flush volume large, adjustment range (l): Flush volume large, adjustment range; 4.5 / 6 / 7.5 l
    • Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
    • Protection box for service opening
    • Connection set for WC, ø 90 mm
    • Connection bend 90° made of PE-HD, ø 90 mm
    • Sleeve made of EPDM, ø 90 / 110 mm
    • Pipe bracket support
    • 2 protection plugs
    • 2 threaded rods M12
    • Fastening material
    Downloads5

    Datasheet or Technical Drawings

    Geberit datasheet - Geberit Duofix element for wall-hung WC, 114 cm, with Sigma concealed cistern 8 cmPDF Installation instructions - Connection set for wall-hung WCPDF Installation instructions - Duofix WC Sigma 8 cmPDF Maintenance manual - Sigma 8 cm concealed cisternPDF Maintenance manual - Sigma 8 cm concealed cistern (2023–)PDF
