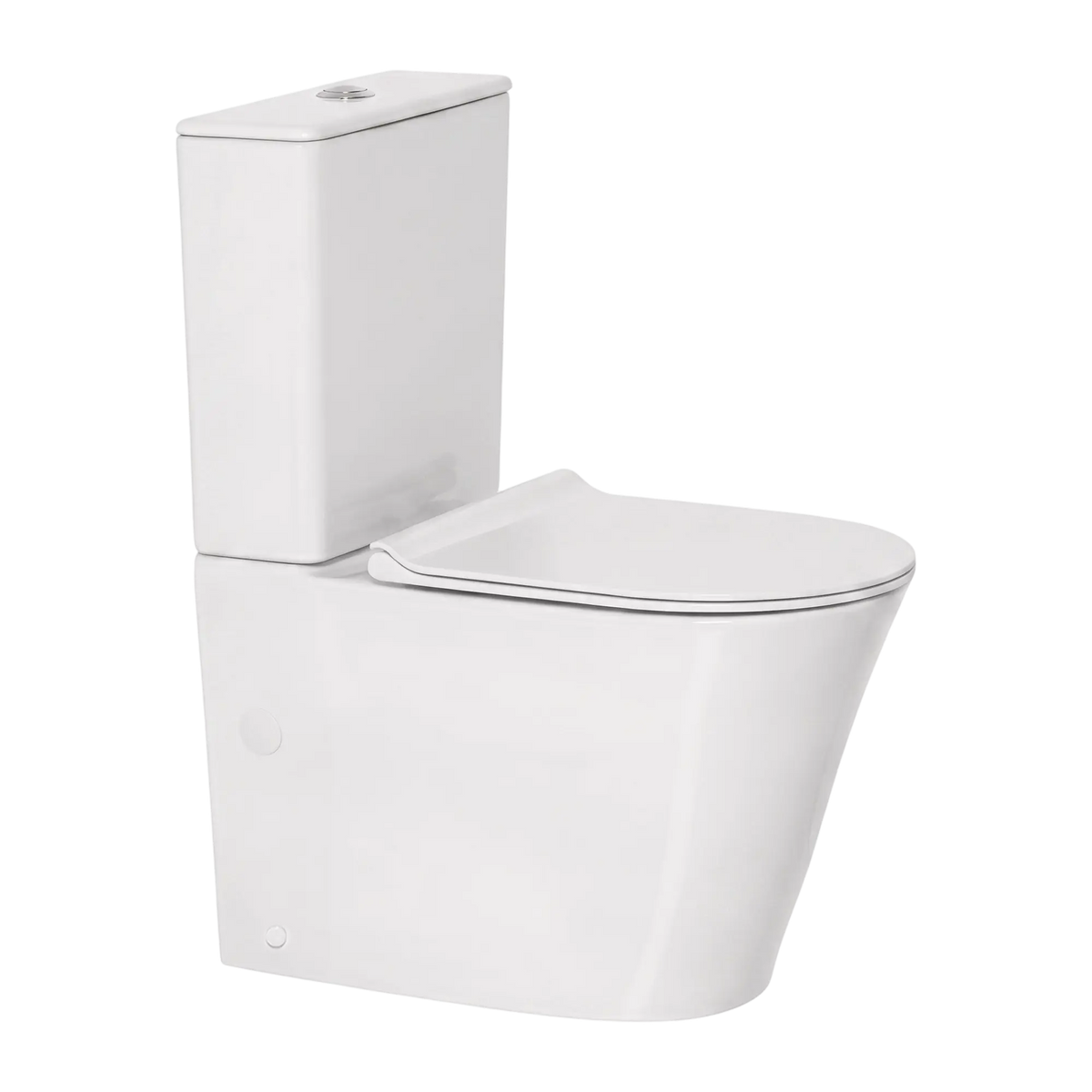

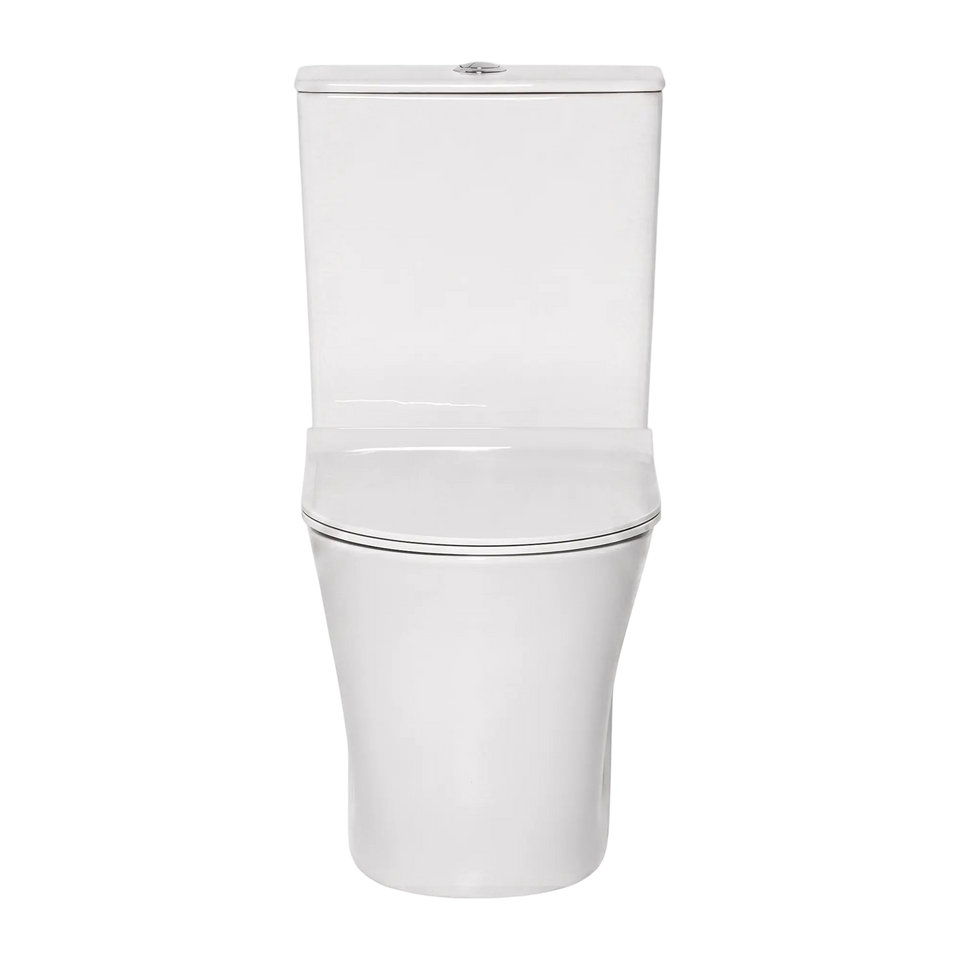

American Standard Heron Hygiene Rim CCBTW - Back Inlet

A classically simple design, this close coupled toilet suite from Heron™ features a back to wall design with a bottom inlet–a perfect fit for even the most compact of spaces. Hygiene Rim™ featuring a rimless bowlDouble Vortex™ technology for maximum flushing performanceWater Efficiency Labelling and Standards (WELS): 4 Star 4.5/3 ltrs/flushClose coupled back to wall toilet suite with bottom inlet

Specifications

• Brand: American Standard
• Product Code: AS01042
• Collection: Heron
• Product Type: Toilet Suites
• Material: Ceramic
• Finish: White
• WELS Rating: 4 Star; Average Flush 3.5 litres per flush, 4.6 litres per full flush, 3.2 litres per half flush
• WELS Registration Number: L05799
• Distributed in Australia by: Nero Tapware Pty Ltd

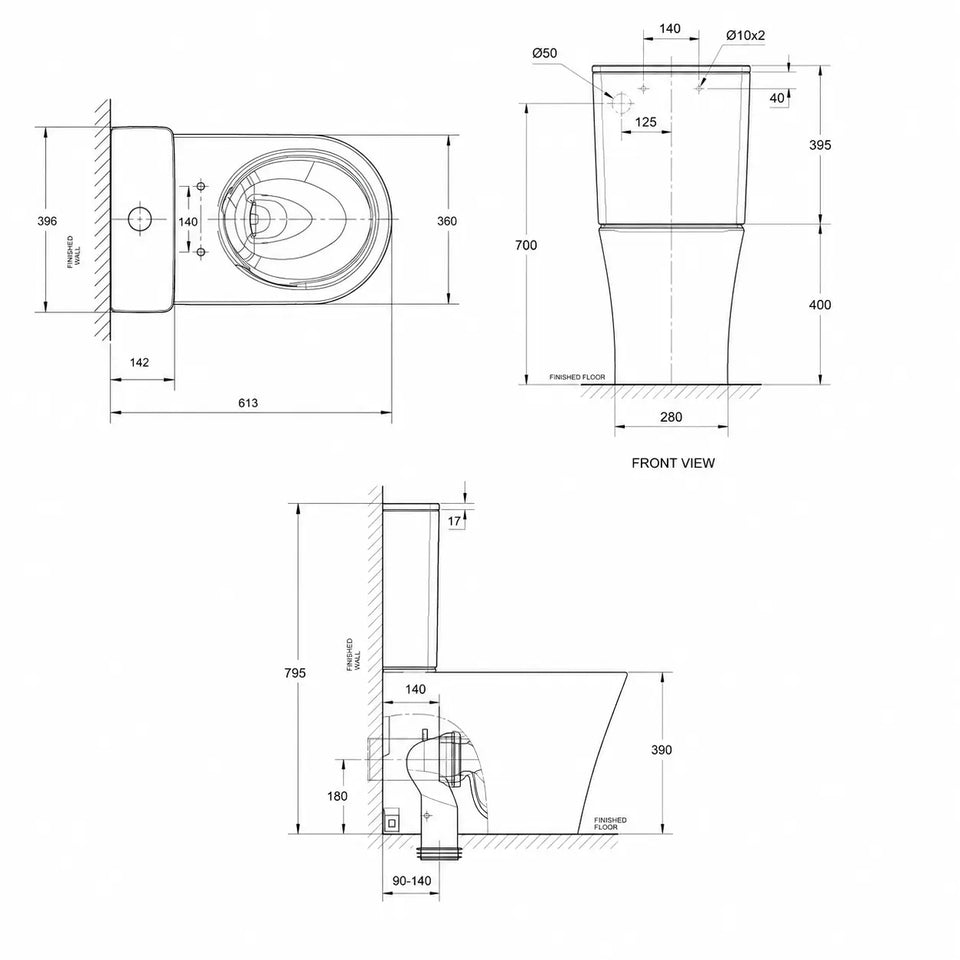

• Dimensions: L613mm x W396mm x H795mm
• Pan Projection: 613 mm
• P-Trap Setout: 180 mm
• S-Trap Setout (minimum): 90 mm
• S-Trap Setout (maximum): 140 mm
• Installation: Floor Mount
• Shape: U-Shape
• Toilet Configuration: Back to Wall & Close Coupled
• Flushing System: Double Vortex™
• Flush Type: Dual Flush™
• Flush Rate: 4.5/3 ltrs/flush
• Cistern Included: Yes
• Seat Included: Yes
• Recommended Use: Commercial, Domestic & Hotel
• Style: Contemporary
• LIXIL Model Number: CL3301B-6DACTBF CL43014-6DACTBF CL6152M-6D
• Weight: 50 kg (Pan 34 kg; Cistern 16 kg)
